Big Creek, Florence Lake Dam
- Description

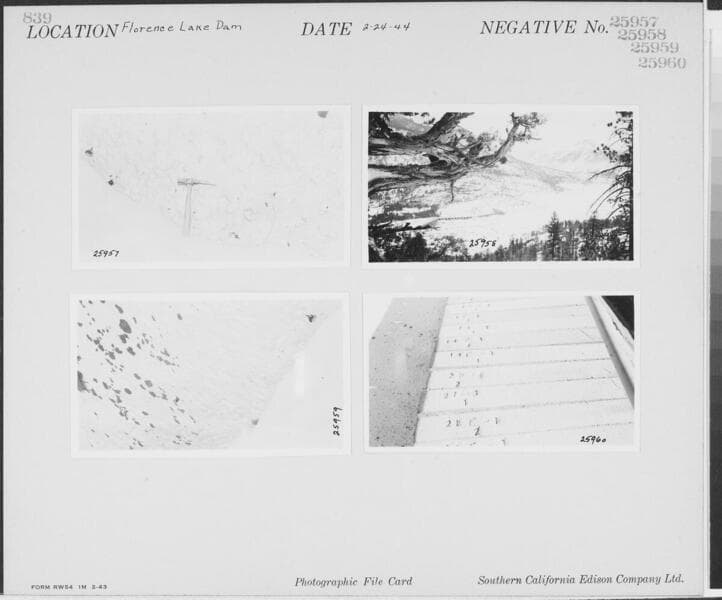

- Big Creek, Florence Lake Dam - Close-up on Arch #51 surface.
- Date
- 3/24/1944
- Call number
- photCL SCE 02 - 25957
Visual Materials
Daily: 10 A.M.–5 P.M.
Closed on Tuesdays
1151 Oxford Road
San Marino, CA 91108
Visual Materials
Big Creek, Florence Lake Dam - Close-up on Arch #51 surface.
photCL SCE 02 - 25959
Visual Materials
Big Creek, Florence Lake Dam - Close-up of original surface of arch underneath gunite near crown of Arch #20. Original surface chipped free of Intertol. Concrete perfectly sound and dry. .
photCL SCE 02 - 24136
Visual Materials

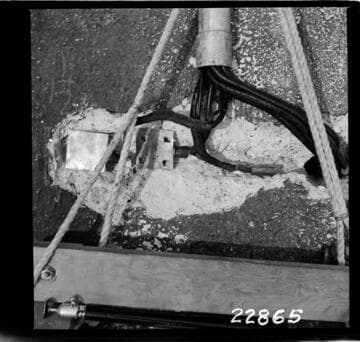

Big Creek, Florence Lake Dam - Close-up of thermometer resistances in place on upstream surface of Arch #6 prior to grouting in.
photCL SCE 02 - 22865
Visual Materials
Big Creek, Florence Lake Dam - Close-up of striations caused by ice on surface of J-M waterproofing on Arch 54 near 54-55 groin. This waterproofing was applied in Dec. 42.
photCL SCE 02 - 24748
Visual Materials
Big Creek, Florence Lake Dam - Close-up of open seam of extrados surface Arch 9 at elevation 7296 near crown of arch.
photCL SCE 02 - 22165
Visual Materials
Big Creek, Florence Lake Dam - Close-up of original surface of arch underneath gunite near crown of Arch #20. Note black surface of original Intertol waterproofing. White area in center of Intertol surface chipped down to sound concrete. Disintegrated layer is approximately 1/4" in depth.
photCL SCE 02 - 24135
