Big Creek, Florence Lake Dam

Description

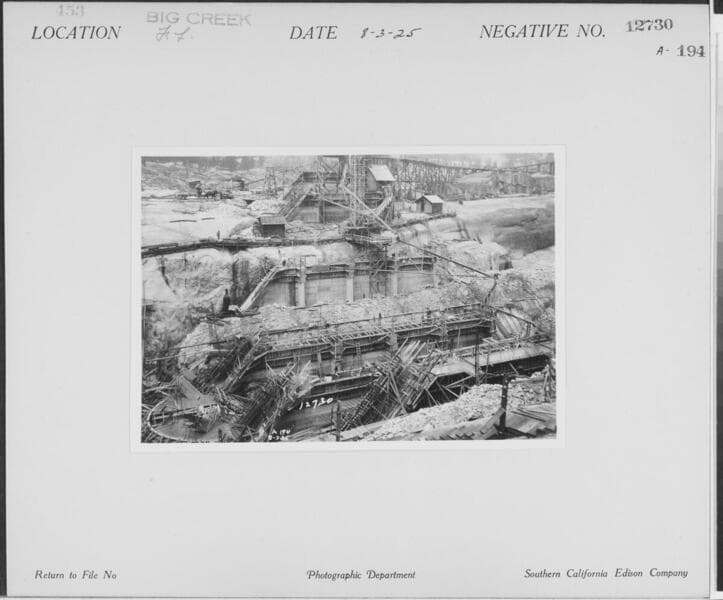

Big Creek, Florence Lake Dam - Closer view, looking west across river section from near Buttress 56. (Excavation for Arches 50, 51, & 52 shown ready for forms. Placing of lift in Buttress 55 has just been completed. Chutes shown in position for placing in Buttress 53.
Type
Visual Materials(Opens in new tab)
Date
8/3/1925
Call number
photCL SCE 02 - 12730
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - View of river section looking N (downstream) from approximately the upstream face of Arch 53, showing heavy reinforcing at junction of Buttresses 53 & 54, with arches 52, 53, & 54 (highest portion of dam), interados form trusses and studding for lower lifts on Arch 54, and counterweighted placing chutes in position for concreting a lift in Buttress 54.

    photCL SCE 02 - 12707

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - Closer view of arch and buttress construction in river section, looking west from approximately the upstream face of arch 56. (Intrados forms for Arch 49 and completed footing trench for Arch 50 are shown in background.

    photCL SCE 02 - 12767

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - View looking North showing erection of forms for construction above early spring work on Arches 13 & 14, excavation for Arch 15, tramway trestle, West mixing plant, and West chuting towers in background, interados forms being erected for Arch 13, and concrete placing for Buttress 12 in progress.

    photCL SCE 02 - 12646

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - Close-up of river section, Arches 53 & 55 shown badly scuffed.

    photCL SCE 02 - 44350

  • Big Creek, Florence Lake Dam - View from in front of Arches

    Big Creek, Florence Lake Dam - View from in front of Arches

    Visual Materials

    Big Creek, Florence Lake Dam - View from in front of Arches - showing details of arch and buttress construction near foundations, looking Northeast from near the upstream surface of Arch 13. [Shop-built panel-type buttress forms are shown on buttresses 13, 14, and 15. Variable span interados form trusses are shown being erected for Arch 15.]

    photCL SCE 02 - 12617

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - Closer view of Angle Buttress No. 10.

    photCL SCE 02 - 22128
