Big Creek, Florence Lake Dam

Description

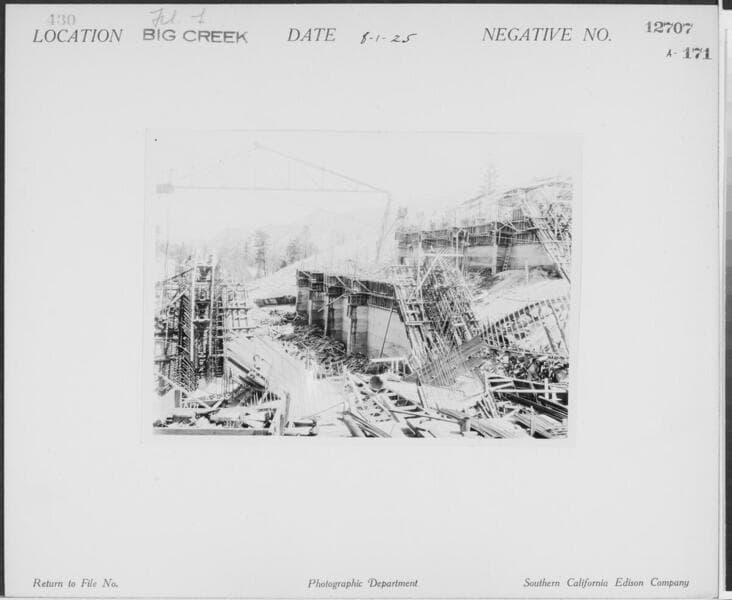

Big Creek, Florence Lake Dam - View of river section looking N (downstream) from approximately the upstream face of Arch 53, showing heavy reinforcing at junction of Buttresses 53 & 54, with arches 52, 53, & 54 (highest portion of dam), interados form trusses and studding for lower lifts on Arch 54, and counterweighted placing chutes in position for concreting a lift in Buttress 54.
Type
Visual Materials(Opens in new tab)
Date
8/2/1925
Call number
photCL SCE 02 - 12707
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

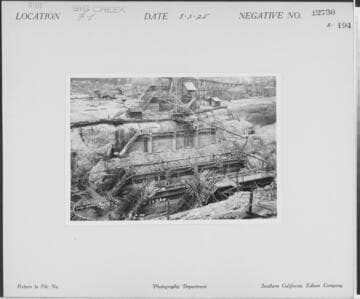

    Big Creek, Florence Lake Dam - Closer view, looking west across river section from near Buttress 56. (Excavation for Arches 50, 51, & 52 shown ready for forms. Placing of lift in Buttress 55 has just been completed. Chutes shown in position for placing in Buttress 53.

    photCL SCE 02 - 12730

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

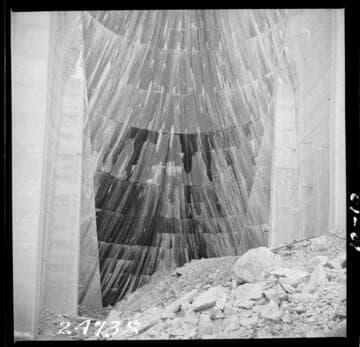

    Big Creek, Florence Lake Dam - View of downstream side Arch 52, lake elevation 7261.90 after completion of guniting. General dampness along 7252 joint running down two to three lifts in places. General dampness along 7240 lift and below. 7244, 7248, 7256, and 7260 lifts appear to be dry.

    photCL SCE 02 - 24738

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

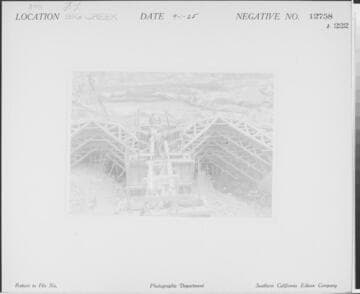

    Big Creek, Florence Lake Dam - Buttress form and built up trusses.

    photCL SCE 02 - 12759

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - Buttress form and built up trusses.

    photCL SCE 02 - 12758

  • Big Creek, Florence Lake Dam - Guniting Arch #53

    Big Creek, Florence Lake Dam - Guniting Arch #53

    Visual Materials

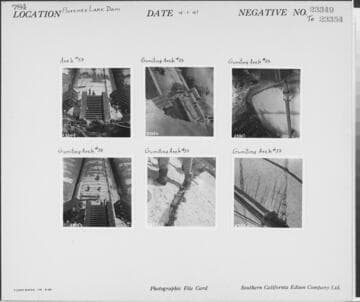

    Big Creek, Florence Lake Dam - Guniting Arch #53 - exposed arch reinforcing steel.

    photCL SCE 02 - 23354

  • Big Creek, Florence Lake Dam - View from in front of Arches

    Big Creek, Florence Lake Dam - View from in front of Arches

    Visual Materials

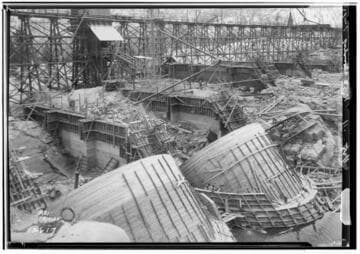

    Big Creek, Florence Lake Dam - View from in front of Arches - showing details of arch and buttress construction near foundations, looking Northeast from near the upstream surface of Arch 13. [Shop-built panel-type buttress forms are shown on buttresses 13, 14, and 15. Variable span interados form trusses are shown being erected for Arch 15.]
