Big Creek, Florence Lake Dam - View showing details of shop-built, panel
Visual Materials

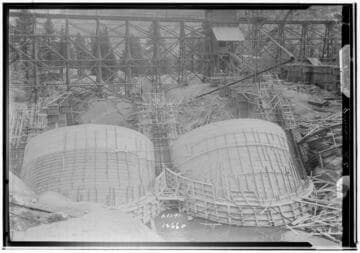

Big Creek, Florence Lake Dam - View showing details of shop-built, panel-type extrados forms, and built-in-place intrados forms on Arches 13 &14; also forms for Buttresses 12, 13 &14. [Intrados reinforcing steel has been placed for Arch 13. Buttress head reinforcing also shown for junction between Arches 13-14 and 14-15.]
photCL SCE 02 - 12660
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - View of river section looking N (downstream) from approximately the upstream face of Arch 53, showing heavy reinforcing at junction of Buttresses 53 & 54, with arches 52, 53, & 54 (highest portion of dam), interados form trusses and studding for lower lifts on Arch 54, and counterweighted placing chutes in position for concreting a lift in Buttress 54.
photCL SCE 02 - 12707
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Closer view, looking west across river section from near Buttress 56. (Excavation for Arches 50, 51, & 52 shown ready for forms. Placing of lift in Buttress 55 has just been completed. Chutes shown in position for placing in Buttress 53.
photCL SCE 02 - 12730
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - View looking North showing erection of forms for construction above early spring work on Arches 13 & 14, excavation for Arch 15, tramway trestle, West mixing plant, and West chuting towers in background, interados forms being erected for Arch 13, and concrete placing for Buttress 12 in progress.
photCL SCE 02 - 12646
Big Creek, Florence Lake Dam - View toward "Frog Pond Section" looking East across buttresses 12 to 18, showing forms in place and concrete placing for buttress 11
Visual Materials
Big Creek, Florence Lake Dam - View toward "Frog Pond Section" looking East across buttresses 12 to 18, showing forms in place and concrete placing for buttress 11. [Tramway trestle, mixing plant and chuting tower are shown in left foreground. The large building shown beyond the end of the trestle is a cement storage warehouse used to store cement for spring work in 1926, before roads were open for transportation. A "lift" of buttress panel forms is being placed on buttress 12 in foreground. Variable-span sectional trusses for supporting interados from sheathing shown at lower right.]
photCL SCE 02 - 12615
Big Creek, Florence Lake Dam - Middle section
Visual Materials

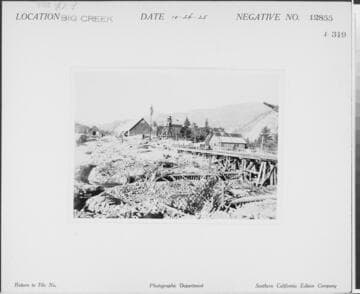

Big Creek, Florence Lake Dam - Middle section - View of site of west portion of middle section of dam, looking northwest from near the spillway location. (Concrete testing laboratory, machine and compressor shop, and cement warehouse are shown in background. Excavation for Arch and Buttress foundation is shown in progress; also first buttress form. Tramway is shown between excavation and buildings.
photCL SCE 02 - 12855
