Big Creek, Florence Lake Dam

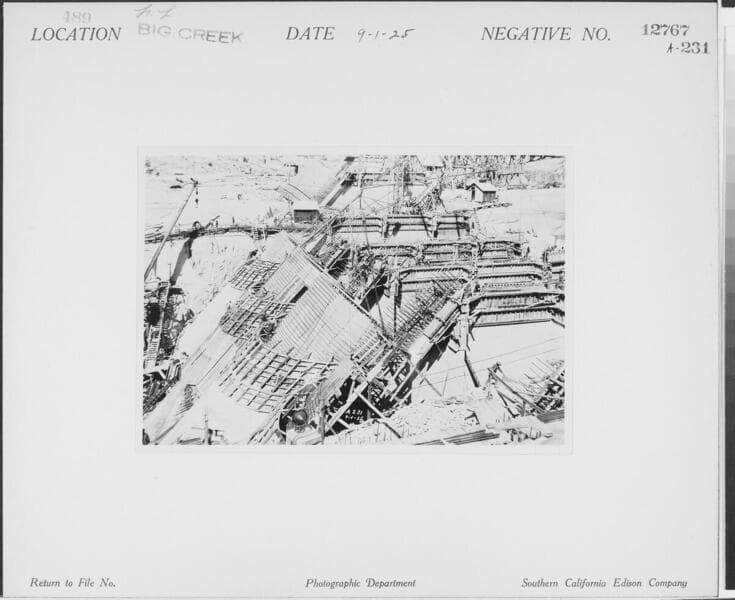

Description: Big Creek, Florence Lake Dam - Closer view of arch and buttress construction in river section, looking west from approximately the upstream face of arch 56. (Intrados forms for Arch 49 and completed footing trench for Arch 50 are shown in background.
Type: Visual Materials(Opens in new tab)
Date: 9/1/1925
Call number: photCL SCE 02 - 12767
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)
