Kaweah #1 - Watershed - Mineral King Dams

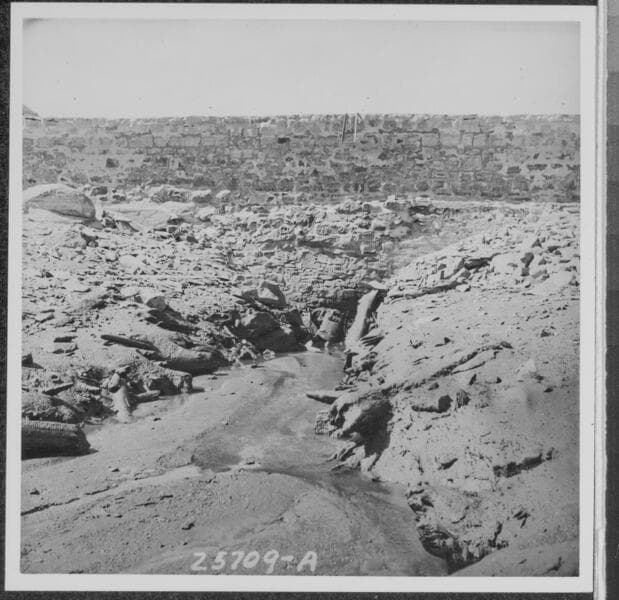

Description: Kaweah #1 - Watershed - Mineral King Dams - upstream face of Franklin Dam at discharge channel with water at minimum level. A portion of the trash rack can be seen in back of two logs lying in channel. Upper portion of rock face had been repaired prior to this date. .
Type: Visual Materials(Opens in new tab)
Date: 9/30/1943
Call number: photCL SCE 02 - 25709a
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)

You might also be interested in

Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - View of the upstream face of Monarch Dam taken from discharge channel to south east end. Photo taken prior to any work.
photCL SCE 02 - 25711
Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - Section of upstream face of Monarch Dam directly above discharge pipe after chipping. Re-grouting joints from scaffold in upper portion of photo.
photCL SCE 02 - 25712
Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - Close-up of a portion of upstream facing directly above intake of 8" discharge pipe. Smaller rocks and evidenly less care was taken in building this portion of masonry wall. [variant of 02-25709a].
photCL SCE 02 - 25709b
Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - Downstream view of Crystal Dam. Water at spill elevation. Estimated leakage, 1 cfs, most of which is concentrated in lower part of "V" near discharge pipe. .
photCL SCE 02 - 25706
Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - Close-up of a portion of the area shown in previous shot showing typical joints opened up for re-grouting. Mortar extended in approximately 4" from face of rocks. In back of mortar, rocks were imbedded in earth. [variant of 02-25707a].
photCL SCE 02 - 25707b
Kaweah #1 - Watershed - Mineral King Dams
Visual Materials
Kaweah #1 - Watershed - Mineral King Dams - Tamping grout in chipped out joint, upstream face of Monarch Dam. Note typical heavy pointing over joints.
photCL SCE 02 - 25713
