Big Creek, Florence Lake Dam

Description
Big Creek, Florence Lake Dam - View of completed extension of 8" fish pipe upstream from Arch 53. This extension was necessary to extend intake of fish pipe through proposed backfill on the upstream side of the river section arches up to elevation 7235. Backfill to be placed during fall of 1942.
Type
Visual Materials(Opens in new tab)
Date
4/10/1942
Call number
photCL SCE 02 - 24720
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

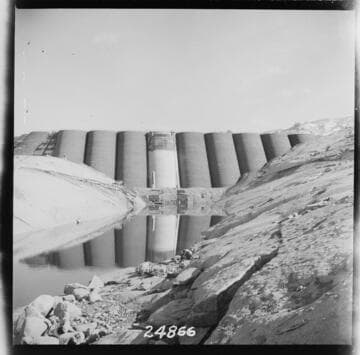

    Big Creek, Florence Lake Dam - Record photo of upstream face of Arches 50 to 58 inclusive in fifth tangent. All arches except 53 coated with J-M Asbestile waterproofing during Dec. 1942.

    photCL SCE 02 - 24866

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - Progress photograph showing first guniting on Arch 54. Arch 55 ready for guniting to elevation 7235, and forms nearly complete for first pour in west sluice pipe extension Arch 53.

    photCL SCE 02 - 24722

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

    Big Creek, Florence Lake Dam - View of excavation in groin between Arches 53 & 54 preparatory to guniting Arch 54 up to elevation 7235.

    photCL SCE 02 - 24718

  • Big Creek, Florence Lake Dam - Record photograph showing intake trash rack and concrete head wall

    Big Creek, Florence Lake Dam - Record photograph showing intake trash rack and concrete head wall

    Visual Materials

    Big Creek, Florence Lake Dam - Record photograph showing intake trash rack and concrete head wall - 8" fish pipe extension upstream from Arch 53.

    photCL SCE 02 - 24721

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

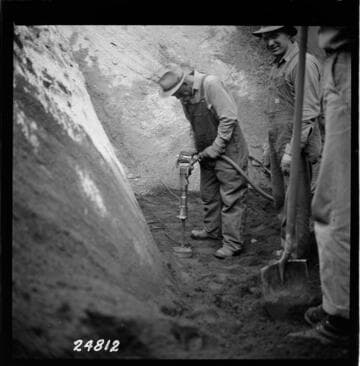

    Big Creek, Florence Lake Dam - Hand tamping earth backfill in haunch between Arches 52 & 53 with Thor-Cochise spader.

    photCL SCE 02 - 24812

  • Big Creek, Florence Lake Dam

    Big Creek, Florence Lake Dam

    Visual Materials

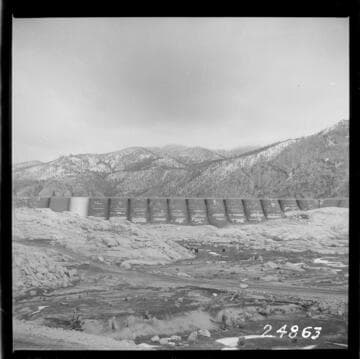

    Big Creek, Florence Lake Dam - Record photo of upstream face of Arches 11 to 25 inclusive in second tangent. Arch #13 covered with sheet steel membrane during June 1942 and Arch #12 covered with J-M Asbestile waterproofing during Nov. 1942.

    photCL SCE 02 - 24863
