Big Creek, Florence Lake Dam

Description: Big Creek, Florence Lake Dam - View of open seam on extrados surface of Arch #36 at elevation 7308 and at junction with spillway section. this seam is directly opposite spurt noted on downstream side during intrados inspection.
Type: Visual Materials(Opens in new tab)
Date: 4/3/1939
Call number: photCL SCE 02 - 22170
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)

You might also be interested in

Big Creek, Florence Lake Dam - Close-up
Visual Materials
Big Creek, Florence Lake Dam - Close-up of open seam at junction of angle buttress 10 and Arch 11 at elevation 7288. 1 1/8" barrel reinforcing steel exposed by chipping and cleaning out seam. This seam is directly opposite spurt noted on downstream side during inspection.
photCL SCE 02 - 22169
Big Creek, Florence Lake Dam - Close-up
Visual Materials
Big Creek, Florence Lake Dam - Close-up of open seam of extrados surface Arch 9 at elevation 7296 near crown of arch.
photCL SCE 02 - 22165
Big Creek, Florence Lake Dam
Visual Materials

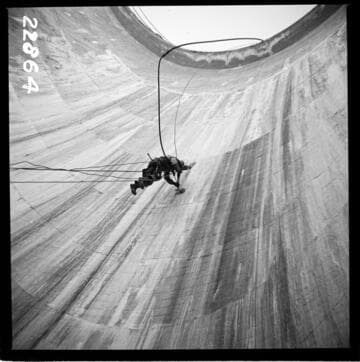

Big Creek, Florence Lake Dam - Chipping for downstream surface thermometer resistance on intrados of Arch #6. Elevation 7313, 2 ft. east of center line
photCL SCE 02 - 22864
Big Creek, Florence Lake Dam - Close-up
Visual Materials
Big Creek, Florence Lake Dam - Close-up of open joint on Arch 9 at elevation 7296 from intrados side of Arch. Section of seam shown is from approximately centerline to 15' east..
photCL SCE 02 - 22177
Big Creek, Florence Lake Dam
Visual Materials

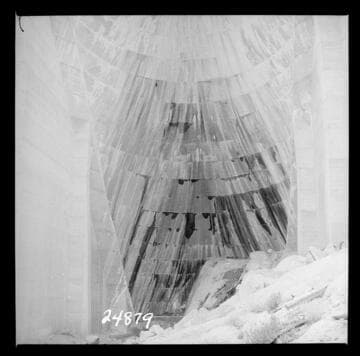

Big Creek, Florence Lake Dam - Photo of intrados of Arch 13 taken during inspection showing distribution of damp areas. Lake elevation 7326.1.
photCL SCE 02 - 24879
Big Creek, Florence Lake Dam
Visual Materials

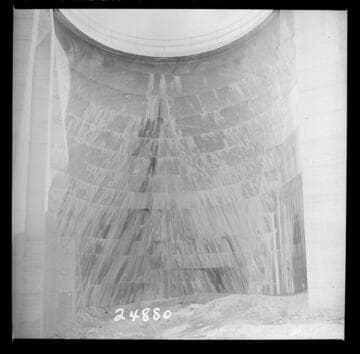

Big Creek, Florence Lake Dam - Photo of intrados of Arch 50 taken during inspection showing distribution of damp areas. Lake elevation 7326.1.
photCL SCE 02 - 24880
