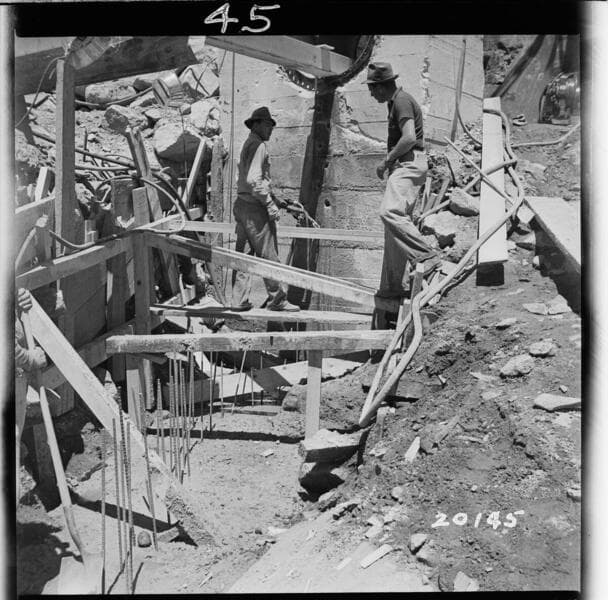

View of excavation for 42" sluice pipe upper end after concrete foundation was poured up to base of 12" bearing wall

You might also be interested in

•

  View of east 42" pipe in place at upper end and forms for bearing walls center and west lines above wye

  Visual Materials

  View of east 42" pipe in place at upper end and forms for bearing walls center and west lines above wye.

  photCL SCE 02 - 20139

•

  Placing reinforcing steel in foundation mat for 42" pipe extension prior to pouring concrete

  Visual Materials

  Placing reinforcing steel in foundation mat for 42" pipe extension prior to pouring concrete.

  photCL SCE 02 - 20147

•

  Showing foundation for 42" pipe extension after pouring 18" mat

  Visual Materials

  Showing foundation for 42" pipe extension after pouring 18" mat. Note rock shear keys projecting above concrete.

  photCL SCE 02 - 20146

•

  Pouring concrete in 12" bearing wall (east) forms above wye

  Visual Materials

  Pouring concrete in 12" bearing wall (east) forms above wye.

  photCL SCE 02 - 20142

•

  View of 42" sluice pipe above wye after first section of west pipe was in place

  Visual Materials

  View of 42" sluice pipe above wye after first section of west pipe was in place.

  photCL SCE 02 - 20140

•

  Dam 1

  Visual Materials

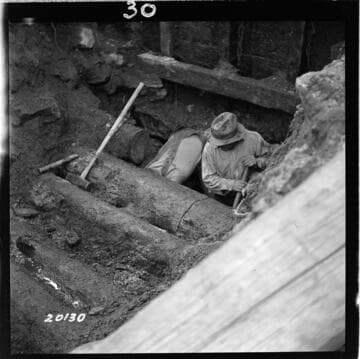

  Dam 1. Photo #2 Cutting away cribbing found in excavating for foundation under West 42" sluice pipe. At upper end adjacent to existing concrete.

  photCL SCE 02 - 20130
