Steam Ship Colon

Description

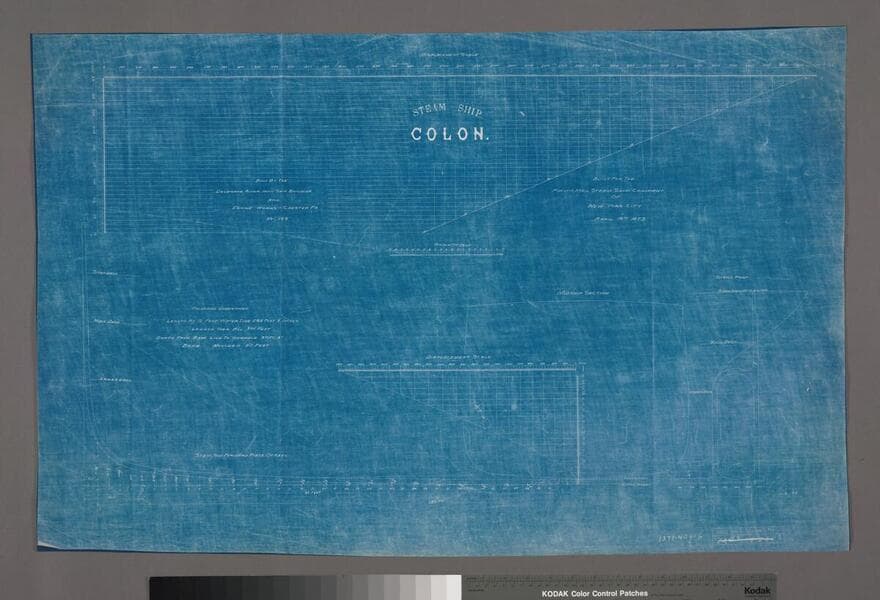

The sheet provides the displacement scale for the Colon, as well as outline drawings of the "Stem and Forward Piece of Keel", the "Midship Section" and "Stern Post" of the vessel. "Steam Ship Colon"--title at top of drawing. "Built by the Delaware River Iron Ship Building and Engine Works, Chester, PA, No. 123"--text in drawing, center, upper left. "Built for the Pacific Mail Steamship Company of New York City April 18th 1873"--text in drawing, center, upper right. "Principal Dimensions / Length at 12 feet water line 282 feet 6 inches / Length overall 300 feet / Depth from Base line to Gunwale 30 ft. 6 " / Beam moulded 40 feet"--text in drawing, center, lower left. "6-9-'93"--date, in ms, bottom right of image. "Case No. 72BS Sheet No. 4540S"--lower right corner, stamped on original; numbers, in ms., have been crossed out; stamp and the case number are the similar to the one found on ephKMSP 006, indicating the origin of the drawing is Union Iron Works Co., San Francisco. "1371-40616"--numbers above the original case and sheet numbers. "Colon"--in ms., in pencil, lower right corner. "2-1 Don"--on verso, in ms., in red pencil. Unknown as to when the copy was made. Focus of item: Colon.
Type
Visual Materials(Opens in new tab)
Date
1893
Call number
priJHK 00151
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Pacific Mail Steamship Co.'s Steamers "Acapulco" and "Colon"

    Pacific Mail Steamship Co.'s Steamers "Acapulco" and "Colon"

    Visual Materials

    The sheet shows the ship's profile and plans for three full decks, Promenade, Upper, and Main. Deck plans show passenger accommodations, along with the dining saloon, social hall, smoking room and other amenities. Hand drawn on vellum. Title in the top - center of the drawing. Scale at bottom of drawing. "Case No. 406s Sheet No. 5454s"--purple stamp, lower right corner, numbers in ms., in ink. Stamp and the case number are similar as the one found on priJHK 00143, indicating the origin of the drawing is Union Iron Works Co., San Francisco. Focus of item: Acapulco (1873-1914) ; Colon (1873-1904).

    priJHK 00912

  • Pacific Mail Steamship Co.'s Steamer "Barracouta"

    Pacific Mail Steamship Co.'s Steamer "Barracouta"

    Visual Materials

    The sheet shows the ship's Dining room, Berths, and Women's Steerage.. Hand drawn on vellum. Title at the bottom of the drawing. "Case No. 406s Sheet No. 7183s"--purple stamp, lower right corner, numbers in ms., in ink. Stamp and the case number are similar as the one found on priJHK 00143, indicating the origin of the drawing is Union Iron Works Co., San Francisco. Focus of item: Barracouta.

    priJHK 00913

  • S.S. Peru: capacities of holds, bunkers, stores, etc

    S.S. Peru: capacities of holds, bunkers, stores, etc

    Visual Materials

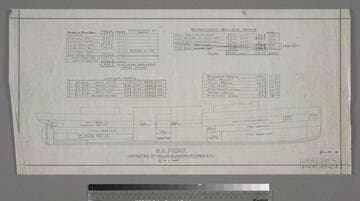

    "S.S. Peru: Capacities of Holds, Bunkers, Stores, Etc."--title at bottom of sheet. "1/6" = 1 foot"--scale given at the bottom of the drawing. Hand drawn on vellum. This sheet has four tables giving the capacities for storage of cargo, water, coal and the cubic feet of rooms; also drawn is a simplified profile of the Peru showing the cargo holds. "Union Iron Works, Shipyard, June 30, 1892, Drawer No., Job No."--purple stamp, lower right corner, date in ms., in ink. "Case No. 406s Sheet No. 5437s"--purple stamp, lower right corner, numbers in ms., in ink. The Peru operated for Pacific Mail between 1892 and 1919; built for PMSSCO by Union Iron Works in 1891-92; she was the second Pacific Mail vessel to carry this name. Focus of item: Peru (1892-1919).

    priJHK 00143

  • S.S. City of Rio De Janiero

    S.S. City of Rio De Janiero

    Visual Materials

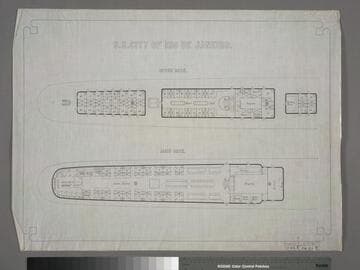

    The sheet shows plans for the upper deck and main deck on the vessel;plans show passenger accommodations, along with the social hall, gents bath and water closet, smoking room and other amenities. Hand drawn on vellum. "S.S. City of Rio De Janiero"--title at the top of the drawing. No scale given. "Case No. 406s Sheet No. 5451s"--purple stamp, lower right corner, numbers in ms., in ink. "Union Iron Works, Shipyard, 18 , Drawer No., Job No."--purple stamp, lower right corner, spaces for ms. entries are blank. Focus of item: City of Rio De Janiero.

    priJHK 00155

  • Passenger Accommodations S.S. City of Puebla

    Passenger Accommodations S.S. City of Puebla

    Visual Materials

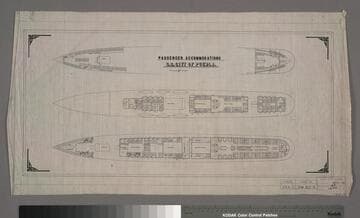

    The sheet shows plans for two full decks, not identified, and steerage on the City of Puebla; cabins are identified, as are crew quarters, mess room, hatches, etc. Hand drawn on vellum. "Passenger Accommodations S.S. City of Puebla"--title at top of sheet. "Scale 1/16 in = 1 foot"--scale given. "L.C."--intials in the right corner of the image. "Case No. 406s Sheet No. 5465s"--purple stamp, lower right corner, numbers in ms., in ink. "Union Iron Works, Ship Yard Dec 1887 Drawer no. L2, Job No. 1624"-- purple stamp, lower right corner, date and numbers in ms., in ink. "C. of Puebla"--in ms., in ink, below stamped information, lower right corner. Focus of item: City of Puebla.

    priJHK 00148

  • Chinese emigration to America: sketch on board the steam-ship Alaska, bound for San Francisco

    Chinese emigration to America: sketch on board the steam-ship Alaska, bound for San Francisco

    Visual Materials

    Image shows food being served and eaten by Chinese emigrants between decks. Reprinted a month later in Harper's Weekly, May 20, 1876. "LR or RL"--signature, lower right corner of image. "A 15"--in ms., in pencil, upper right corner of sheet. "40- ixgA"--on mat, in ms., in pencil, lower right corner.

    priJHK 00208
