Big Creek, Florence Lake Dam - Mono-Bear Siphon

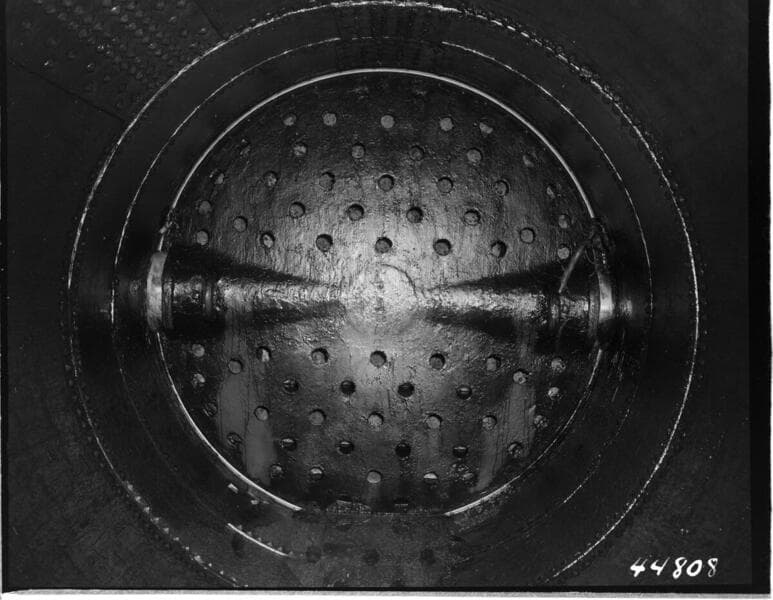

Description: Big Creek, Florence Lake Dam - Mono-Bear Siphon - Flashlite picture of the upstream side of the butterfly valve at Camp 62 Adit, during outage for installation of venturi meter. Note almost perfect condition of coal tar enamel coating.
Type: Visual Materials(Opens in new tab)
Date: Sept. 1956
Call number: photCL SCE 02 - 44808
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)

You might also be interested in

Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Florence Lake Tunnel Intake upstream venturi meter lining.
photCL SCE 02 - 22988
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Record photo of River Section arches. Johns-Manville waterproofing on all arches except Arch No. 53. Upper portion of Arch 53 is covered with Barrett Waterworks enamel. The lower portion is linseed oil treatment over gunite with reflective coating of aluminum.
photCL SCE 02 - 24838
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Ward Tunnel Repairs - View showing access hole cut in Mono-Bear Siphon pipe at Camp 62 Adit. A section of 24" O.D. pipe being taken into Adit for construction of temporary diversion. .
photCL SCE 02 - 26570A
Big Creek, Mono-Bear Diversion
Visual Materials
Big Creek, Mono-Bear Diversion - Temporary Mono-Bear Siphon diversion pipe outside of Camp 62 Adit.
photCL SCE 02 - 26936
Big Creek, Mono-Bear Diversion - Mono-Bear Siphon
Visual Materials
Big Creek, Mono-Bear Diversion - Mono-Bear Siphon - Mono Flow Line - outside of the pipe in a test hole.
photCL SCE 02 - 23393
Big Creek, Mono-Bear Diversion - Mono-Bear Siphon
Visual Materials
Big Creek, Mono-Bear Diversion - Mono-Bear Siphon - Mono Flow Line - Looking upstream.
photCL SCE 02 - 23392
