Big Creek, Florence Lake Dam

Description

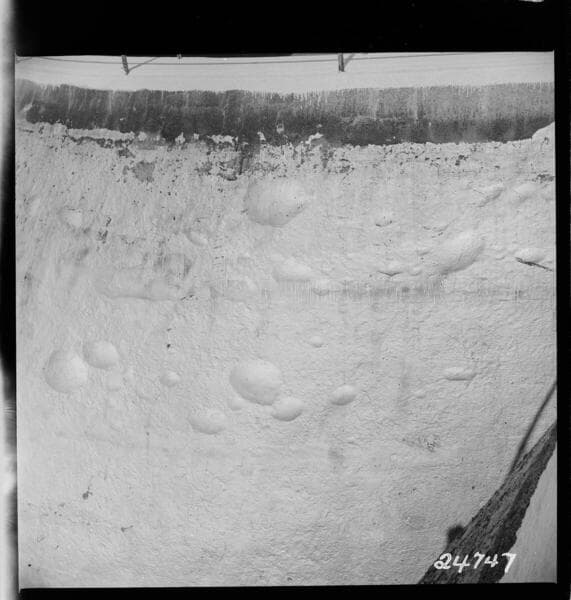

Big Creek, Florence Lake Dam - Close-up of a cluster of blisters on the J-M Asbestile waterproofing on Arch 8. Waterproofing was applied May 1940.
Type
Visual Materials(Opens in new tab)
Date
3/31/1943
Call number
photCL SCE 02 - 24747
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)
