Big Creek, Florence Lake Dam

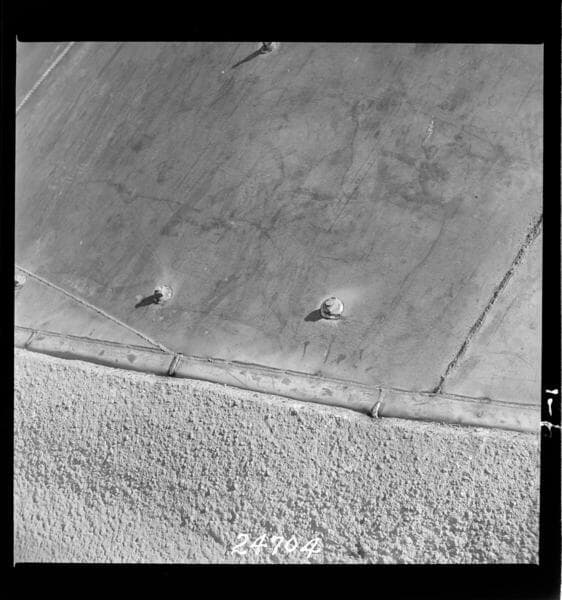

Description: Big Creek, Florence Lake Dam - Arch #13 Close-up of lower horizontal seal completed.
Type: Visual Materials(Opens in new tab)
Date: 5/23/1942
Call number: photCL SCE 02 - 24704
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)

You might also be interested in

Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Close-up of 9" sealing plate, and reinforcing mesh in place in lower horizontal key prior to guniting Arch 13.
photCL SCE 02 - 24701
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Arch #13 progress picture showing installation of steel facing. Welding completed on lower portion.
photCL SCE 02 - 24705
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Arch #13, Guniting upper horizontal key.
photCL SCE 02 - 24714
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Close-up of 9" sealing plate in lower horizontal key after guniting in place. Plate is imbedded 6.5" in gunite. The 12' lengths of plate were electrically butt welded at the ends before guniting.
photCL SCE 02 - 24702
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - Close-up of groin between Arch 13 & 14, showing 24" sealing plate imbedded in gunite filler.
photCL SCE 02 - 24199
Big Creek, Florence Lake Dam
Visual Materials

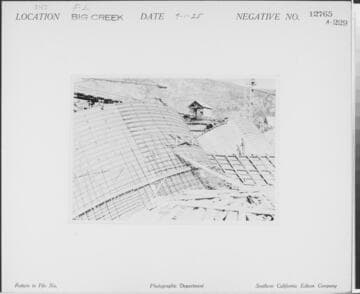

Big Creek, Florence Lake Dam - Close-up showing Arch reinforcing.
