Big Creek, Vermilion Dam
- Description

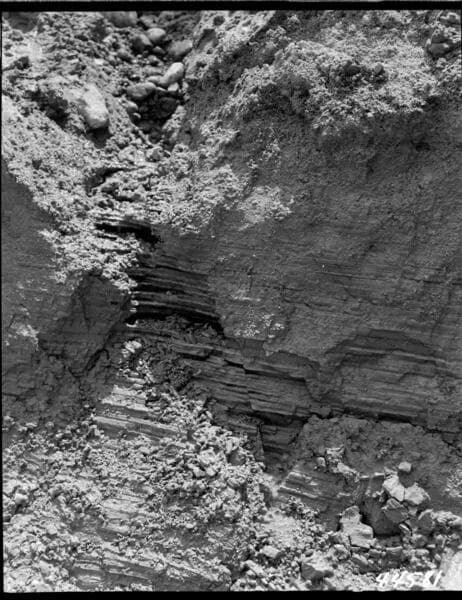

- Big Creek, Vermilion Dam - Auxiliary Drain #2. - Close-up of silt formation south bank of excavation at Sta[tion] 0-90.
- Date
- 5/29/1956
- Call number
- photCL SCE 02 - 44581
Visual Materials
Daily: 10 A.M.–5 P.M.
Closed on Tuesdays
1151 Oxford Road
San Marino, CA 91108
Visual Materials
Big Creek, Vermilion Dam - Near sta[tion] 0-40, in glacial till saturated with water.
photCL SCE 02 - 44554
Visual Materials
Big Creek, Vermilion Dam - Seep area near sta[tion] 28.00 with toe drain filter in background.
photCL SCE 02 - 42799
Visual Materials
Big Creek, Vermilion Dam - Slope at Sta[tion] 9+00, opposite upper toe drain outlet. Typical erosion.
photCL SCE 02 - 44363
Visual Materials
Big Creek, Vermilion Dam - Downstream slope of Vermilion Dam in vicinity of Sta[tion] 37+00 near east end showing group of Piezometer & Drain holes installed in 1956.
photCL SCE 02 - 44885
Visual Materials

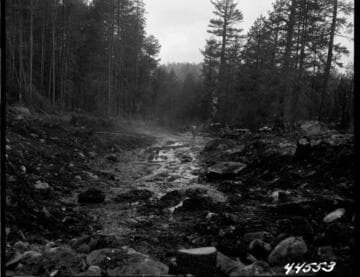

Big Creek, Vermilion Dam - Excavation for auxiliary drain #2.
photCL SCE 02 - 44553
Visual Materials

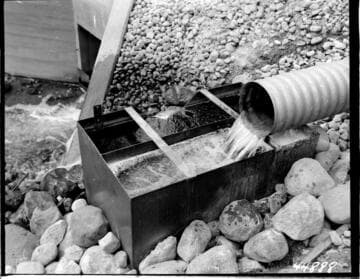

Big Creek, Vermilion Dam - Close-up of weir box for measuring flow from the auxiliary drain #1.
photCL SCE 02 - 44888
