Big Creek, Huntington Lake Dams
- Description

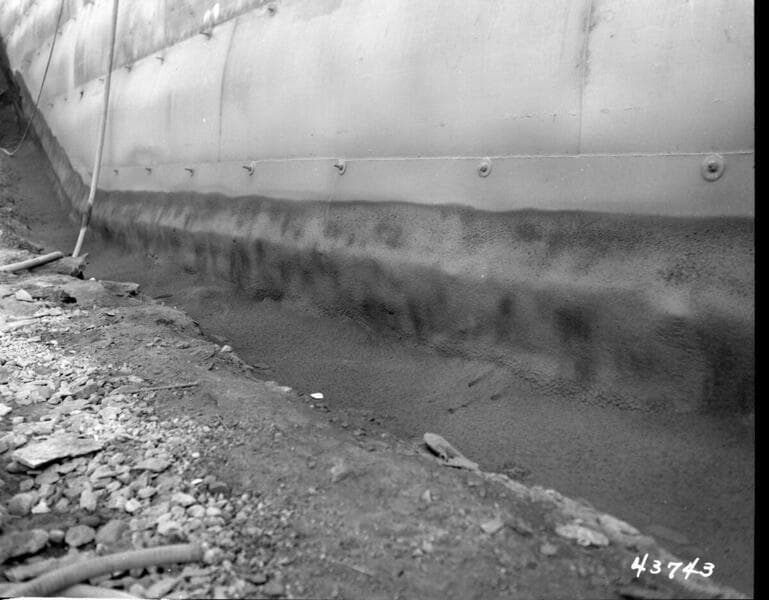

- Big Creek, Huntington Lake Dams - Gunite protection of marginal cut-off of steel facing area.
- Date
- 9/25/1955
- Call number
- photCL SCE 02 - 43743
Visual Materials
Daily: 10 A.M.–5 P.M.
Closed on Tuesdays
1151 Oxford Road
San Marino, CA 91108
Visual Materials

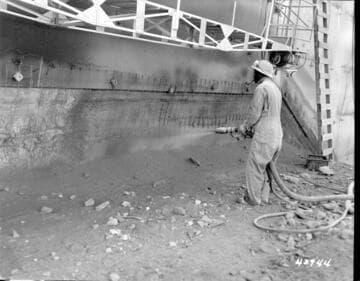

Big Creek, Huntington Lake Dams - Applying gunite protection strip over marginal boundary of steel facing - Dam #1.
photCL SCE 02 - 43744
Visual Materials
Big Creek, Huntington Lake Dams - Upstream protection closer view of marginal channel at east end of Dam #1, showing anchored in place in 12"x12" cut-off in concrete.
photCL SCE 02 - 43320
Visual Materials
Big Creek, Huntington Lake Dams - Upstream protection excavating 12"x12" water cut-off along margin of steel plate membrane at east end of Dam #1.
photCL SCE 02 - 43321
Visual Materials

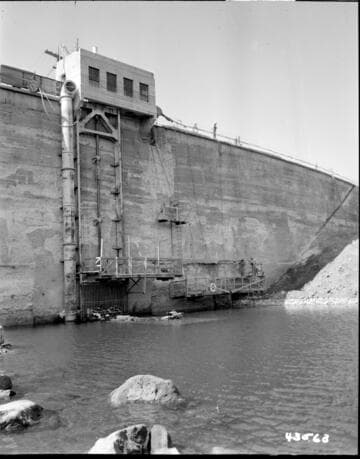

Huntington Lake Dams - Vicinity of Shaver diversion inlet at Dam #2. Note west marginal cut-off for steel facing at right edge of picture; also cutting recess for access wall to right of gatehouse.
photCL SCE 02 - 43563
Visual Materials
Big Creek, Huntington Lake Dams - Upstream protection - Steel facing being placed in test section at east end of Dam #1. Bottom of section at elvation 6930.
photCL SCE 02 - 43532
Visual Materials
Big Creek, Huntington Lake Dams - Copy of Page 11 of Stone & Webster Report on Backfills on Dams at Huntington Lake: 38. General view of chipping and drilling operations. 39. Concreting trench in front of cut off wall. 40. Upstream face of Dam 3A looking north after completion of concreting and guniting. 41. Upstream face looking south after completion of concrete and gunite work.
photCL SCE 02 - 21854
