Big Creek, Florence Lake Dam - Arch #13

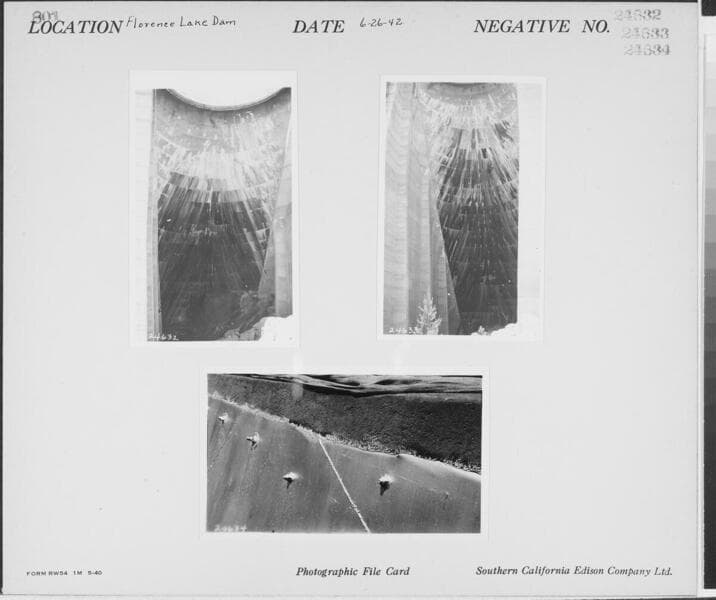

Description: Big Creek, Florence Lake Dam - Arch #13 - Junction of steel plate face & walkway.
Type: Visual Materials(Opens in new tab)
Date: 6/26/1942
Call number: photCL SCE 02 - 24634
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)
