Big Creek, Huntington Lake Dams - Dam #1
Visual Materials

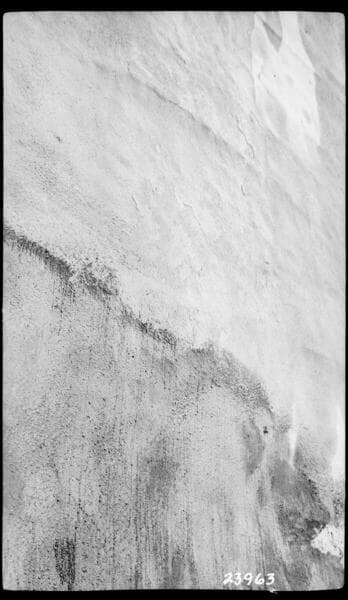

Big Creek, Huntington Lake Dams - Dam #1 - Scaling of granite coat.
photCL SCE 02 - 23962
Big Creek, Huntington Lake Dams
Visual Materials

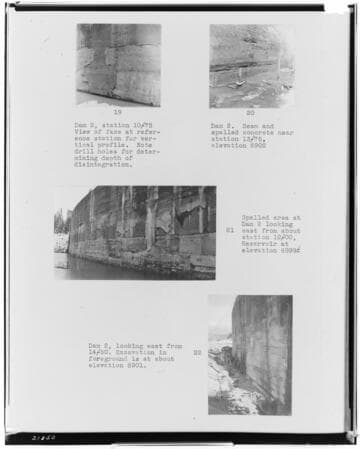

Big Creek, Huntington Lake Dams - Copy of Page 7 of Stone & Webster Report on Backfills on Dams at Huntington Lake: 19. Dam 2, station 10+75, view of face at reference station for vertical profile. Note drill holes for determining depth of disintegration. 20. Dam 2. Seam & spalled concrete near station 13+75, elev. 6902' 21. Spalled area at Dam 2 looking east from about station 12+00; reservoir at elevation 6899'. 22. Dam 2, looking east from 14+50. Excavation in foregroundis at about elevation 6901'.
photCL SCE 02 - 21850
Big Creek, Huntington Lake Dams
Visual Materials
Big Creek, Huntington Lake Dams - Scaffolding pickers scaling Dam #1
photCL SCE 02 - 04442
Big Creek, Huntington Lake Dams - Dam 1 Upstream face
Visual Materials
Big Creek, Huntington Lake Dams - Dam 1 Upstream face - Approx. stationing 11+00 to 11+50. Applying steel reinforcing to chipped area near west end prior to guniting.
photCL SCE 02 - 22493
Big Creek, Huntington Lake Dams
Visual Materials
Big Creek, Huntington Lake Dams - Copy of Page 9 of Stone & Webster Report on Backfills on Dams at Huntington Lake: 27. Looking south from station 0+75. Cutoff wall during excavation. 28. Looking north from station 0+60, during excavation. Note ends of timpers at bottom of battered face. 29. Close-up of concrete cut off wall, station 0+40. 30. Porous rock pockets in concrete, near station 1+00 31. Porous rock pockets in concrete cut off wall, near station 0+10 32. Chippin gand removing porous concrete. Looking south from station 0+50.
photCL SCE 02 - 21852

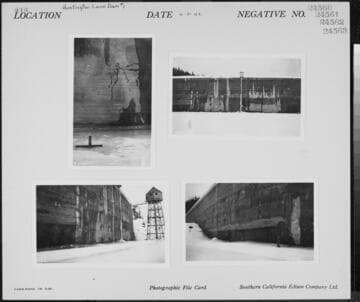

Big Creek, Huntington Lake Dams - Dam 1
Visual Materials
Big Creek, Huntington Lake Dams - Dam 1 - West end showing gunite band.
photCL SCE 02 - 24562
