Big Creek, Huntington Lake Dams

Description

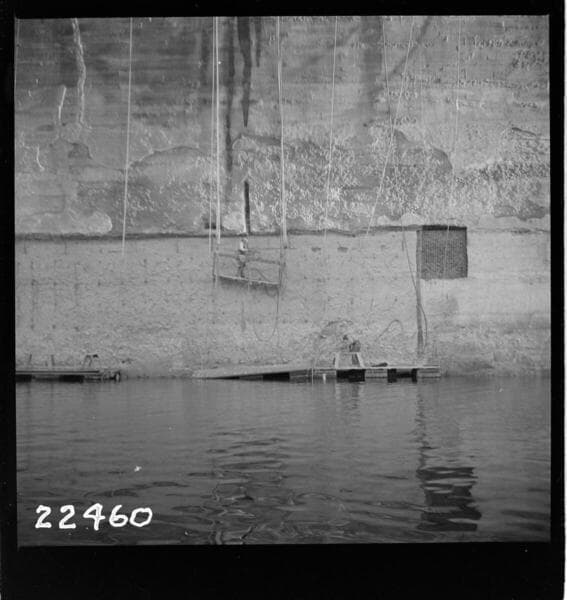

Big Creek, Huntington Lake Dams - Dam 1 progress photo showing west section of area back of sluice gate stems. Chipping in progress. Note application of dock coating over small area west of vertical key along west side of gunite area. water elevation 6896
Type
Visual Materials(Opens in new tab)
Date
10/28/1939
Call number
photCL SCE 02 - 22460
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Big Creek, Huntington Lake Dams

    Big Creek, Huntington Lake Dams

    Visual Materials

    Big Creek, Huntington Lake Dams - Dam 1 progress photo showing east end of area back of sluice gate stems. Chipping in progress. water elevation 6896

    photCL SCE 02 - 22458

  • Big Creek, Huntington Lake Dams

    Big Creek, Huntington Lake Dams

    Visual Materials

    Big Creek, Huntington Lake Dams - Dam 1 progress photo showing middle section of area back of sluice gate stems. Chipping in progress. water elevation 6896

    photCL SCE 02 - 22459

  • Big Creek, Huntington Lake Dams

    Big Creek, Huntington Lake Dams

    Visual Materials

    Big Creek, Huntington Lake Dams - Copy of Page 3 of Stone & Webster Report on Backfills on Dams at Huntington Lake: 4. Dam #1 - Badly disintegrated and porous concrete in vertical joint near station 5+66, elevation 690-4, after partial removal. Part of old repair plug in lower left center. 5. Dam #1 - Area near station 5+66, elevation 6904. Chipping in progress. Note two holes from which air escaped when applied to 4" drain through downstream backfill. 6. Dam #1. A second view of leak intakes near station 5+66, elevation 6904'. 7. Dam #1. Area near station 5+66, elevation 6904' after guniting.

    photCL SCE 02 - 21846

  • Big Creek, Huntington Lake Dams - Dam 1 Upstream face

    Big Creek, Huntington Lake Dams - Dam 1 Upstream face

    Visual Materials

    Big Creek, Huntington Lake Dams - Dam 1 Upstream face - View showing completed gunite from sluice gate section west. Lake elevation 6850.5

    photCL SCE 02 - 22815

  • Big Creek, Huntington Lake Dams - Dam 1 Upstream face

    Big Creek, Huntington Lake Dams - Dam 1 Upstream face

    Visual Materials

    Big Creek, Huntington Lake Dams - Dam 1 Upstream face - View showing completed gunite from sluice gate section east. Lake elevation 6850.5

    photCL SCE 02 - 22816

  • Big Creek, Florence Lake Dam - Close-up

    Big Creek, Florence Lake Dam - Close-up

    Visual Materials

    Big Creek, Florence Lake Dam - Close-up of a portion of open seam on Arch 9 at elevation 7296 and 10' west of center line showing 3/8" vertical Tie steel exposed after chipping and cleaning out seam.

    photCL SCE 02 - 22167
