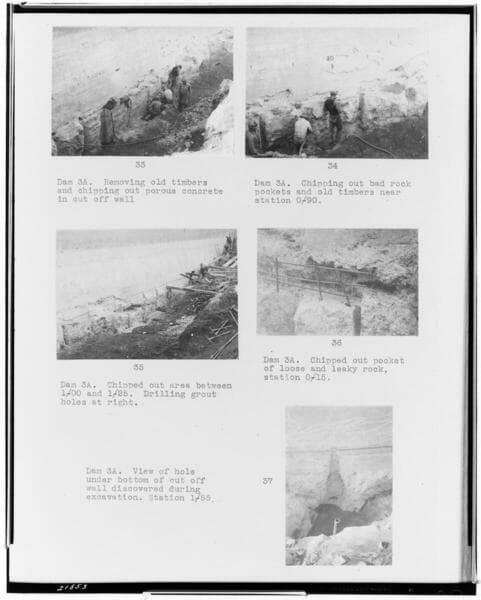

Big Creek, Huntington Lake Dams - Copy of Page 10 of Stone & Webster Report on Backfills on Dams at Huntington Lake: 33. Removing old timbers & chipping out porous concrete in cut off wall. 34. Chipping out bad rock pockets and old timbers near station 0+90. 35. Chipped out area between 1+00 & 1+25. Drilling grout holes at right. 36. Chipped out pocket of loose and leaky rock, station 0+15. 37. View of hole under bottom of cut off wall discovered during excavation. Station 1+55.
