Big Creek, Vermilion Dam

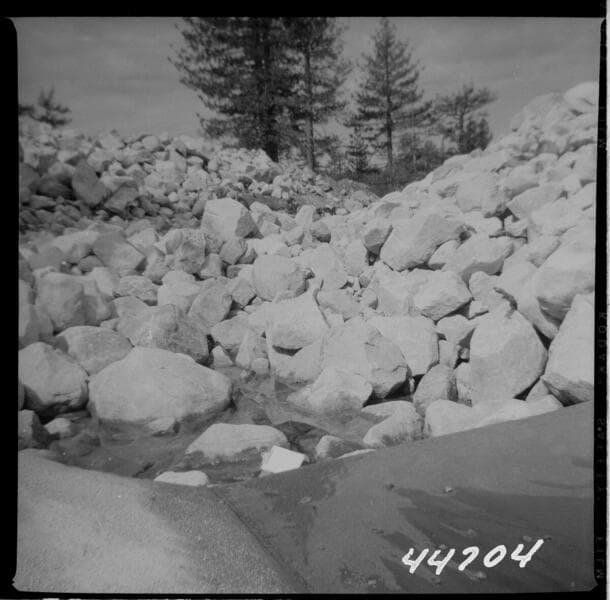

Description: Big Creek, Vermilion Dam - End of spillway after extended flow.
Type: Visual Materials(Opens in new tab)
Date: 1956
Call number: photCL SCE 02 - 44704
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)
