Portal Powerhouse - Side Channel Diversion thru openings in 12' diameter pipe

Description

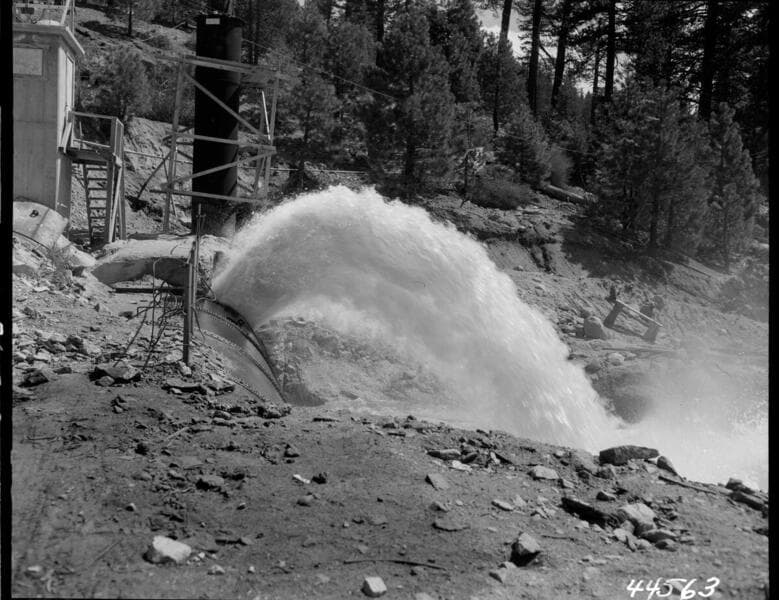

Portal Powerhouse - Side Channel Diversion thru openings in 12' diameter pipe - approx. 1700 cfs flow in Ward Tunnel
Type
Visual Materials(Opens in new tab)
Date
5/22/1956
Call number
photCL SCE 02 - 44563
Find out more
View in the Huntington Digital Library(Opens in new tab)
View in the Library catalog(Opens in new tab)

You might also be interested in

  • Portal Powerhouse - Discharge at side

    Portal Powerhouse - Discharge at side

    Visual Materials

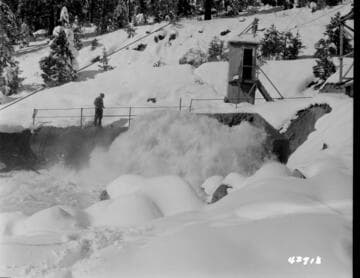

    Portal Powerhouse - Discharge at side - channel spillway at approximately 1500 cfs flow thru tunnel.

    photCL SCE 02 - 43918

  • Portal Powerhouse

    Portal Powerhouse

    Visual Materials

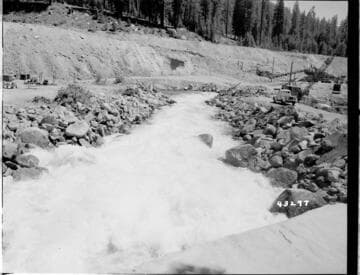

    Portal Powerhouse - View of tunnel diversion during test flow of 490 cfs. Flow in diversion ditch from 12' pipe to junction with Rancheria Creek channel.

    photCL SCE 02 - 43297

  • Portal Powerhouse

    Portal Powerhouse

    Visual Materials

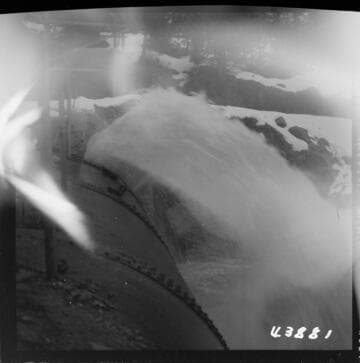

    Portal Powerhouse - Tunnel flow approximately 1700 cfs. About 400cfs of flow comes from side opening in pipe.

    photCL SCE 02 - 43881

  • Portal Powerhouse

    Portal Powerhouse

    Visual Materials

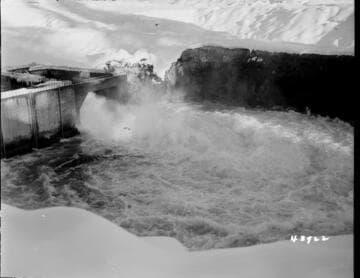

    Portal Powerhouse - Channel below powerhouse structure, flow approx. 1800 cfs thru Ward Tunnel.

    photCL SCE 02 - 43922

  • Portal Powerhouse - 250 cfs flow in channel - First Diversion

    Portal Powerhouse - 250 cfs flow in channel - First Diversion

    Visual Materials

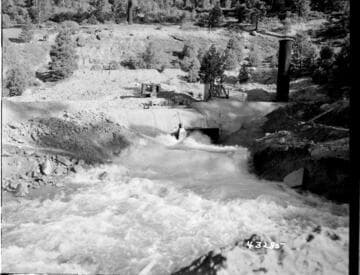

    Portal Powerhouse - 250 cfs flow in channel - First Diversion - 8:15 a.m..

    photCL SCE 02 - 43285

  • Portal Powerhouse

    Portal Powerhouse

    Visual Materials

    Portal Powerhouse - Temporary flow diversion from 12' pipe [Ward Tunnel]. Flow about 425 cfs..

    photCL SCE 02 - 43643
