Big Creek, Huntington Lake Dams

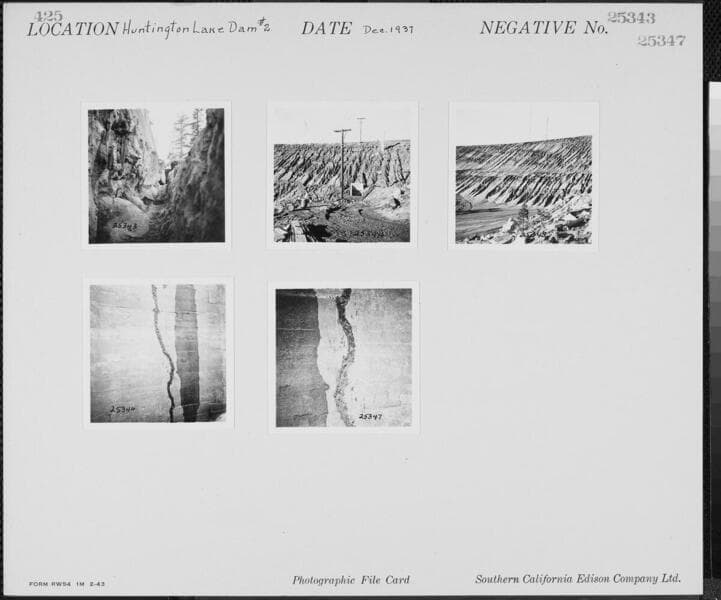

Description: Big Creek, Huntington Lake Dams - View of typical vertical crack.
Type: Visual Materials(Opens in new tab)
Date: 1/1/1938
Call number: photCL SCE 02 - 25346
Find out more: View in the Huntington Digital Library(Opens in new tab); View in the Library catalog(Opens in new tab)
